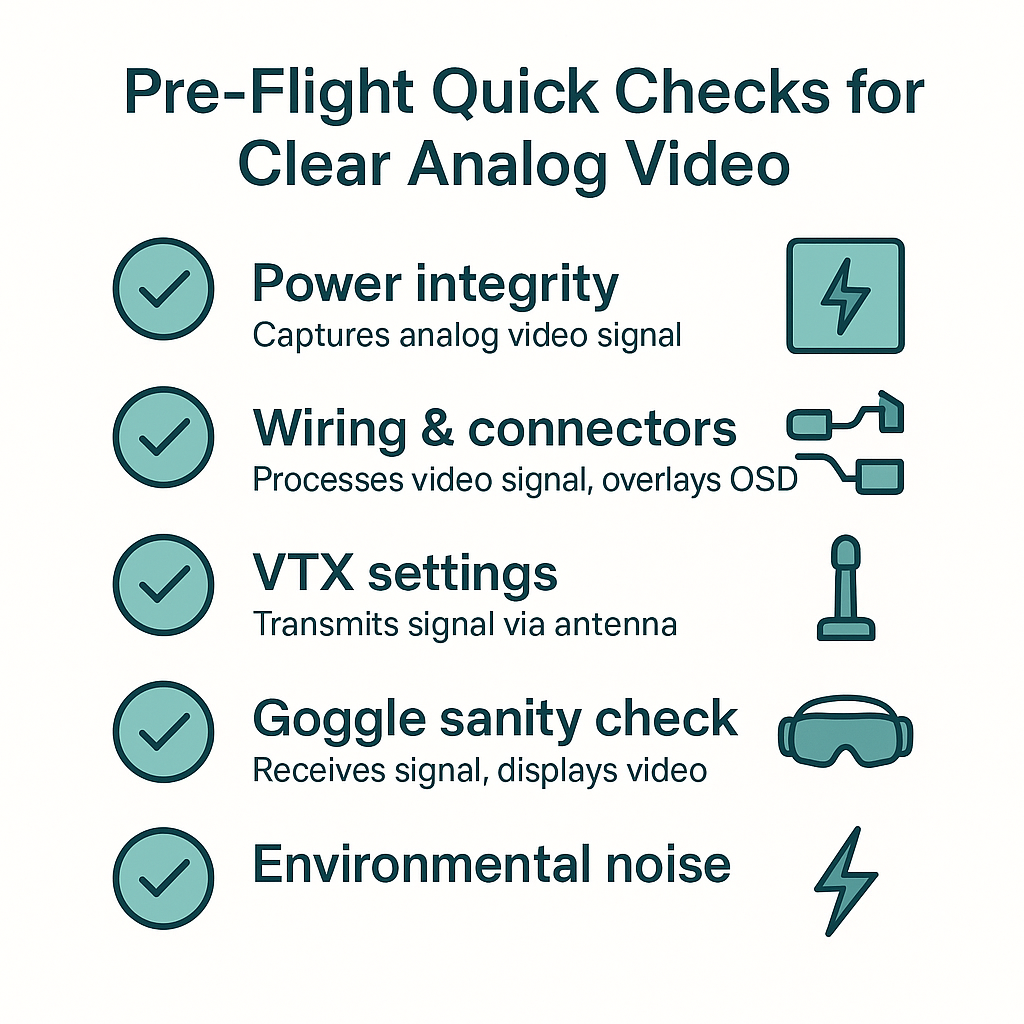

Wiring Woes: Inspecting Connectors, Solder Joints, and Signal Paths

The physical connections between components are frequent points of failure.

• Visual Inspection: Meticulously examine all wiring and connectors in the video signal path: the camera's connection to the FC (or VTX if direct), and the FC's connection to the VTX.
• Common Issues: Look for signs of:
  • Cold Solder Joints: These appear dull, balled-up, or cracked and make poor electrical contact. Re-soldering with sufficient heat and flux is necessary.
  • Loose Pins in Connectors: Pins can become dislodged or make intermittent contact within their housings. Ensure connectors are fully seated.
  • Frayed or Broken Wires: Wires can break internally, especially near solder joints or where they are subject to stress or vibration.
    A video cable broken inside its insulation was identified as a cause of video loss in one instance.

• Signal Path Verification:

• Ensure the video signal wires (commonly yellow) are routed correctly: Camera Video Output to FC Video Input; then FC Video Output to VTX Video Input.

• Twisting the video signal wire with its corresponding ground wire can create a simple shield, helping to reject electromagnetic interference (EMI) from nearby components.

• Physically separate video signal and power wires from high-noise sources like ESC power lines, motor wires, and inductors on the PDB/FC as much as possible.


VTX Vitals: Ensuring Correct Power, Antenna Connection, and Channel/Band Synchronization

The Video Transmitter is responsible for sending the camera's image wirelessly.

• Power: Confirm the VTX is receiving the correct voltage and sufficient current for its selected output power level. Black lines in the video can be a symptom of an underpowered VTX.

• Antenna Connection:

• ⚠️Crucial Warning: Never power up a VTX without its antenna securely connected. Doing so can cause the VTX's output power to be reflected back into its circuitry, leading to rapid overheating and permanent damage.

• Ensure the VTX antenna connector is screwed on tightly.

• Channel/Band Synchronization:

• Verify that the VTX and the FPV goggles are set to the exact same channel and band. Being on an adjacent or "close" channel might sometimes yield a weak or distorted image, but not a clear one.

• Incorrect channel or band selection is a common cause of poor signal or color issues.

• If using SmartAudio or Tramp protocols for VTX control via the flight controller, ensure these are correctly configured in the Betaflight (or other firmware) "Ports" tab and that the VTX table is appropriate for the VTX model. The "Device Ready: Yes" status in the Betaflight VTX tab confirms communication between the FC and VTX.


Antenna Health: Checking Connectors (SMA/RP-SMA), Polarization (LHCP/RHCP), and Physical Damage

Antennas are the crucial link for wireless video transmission.

• Connectors: The VTX antenna and the goggle's receiver antenna(s) must have compatible connectors. The two common types are SMA and RP-SMA (Reverse Polarity SMA). They look similar but are not interchangeable; attempting to force a mismatch will result in no proper electrical connection and potentially damage the connectors.

• Polarization: For circular polarized antennas (most commonly used in FPV), both the VTX antenna and the goggle antenna(s) must have the same polarization: either both Right-Hand Circularly Polarized (RHCP) or both Left-Hand Circularly Polarized (LHCP). A mismatch (e.g., RHCP on VTX and LHCP on goggles) will result in a very significant signal loss, often around 50% or more, leading to poor range and video quality. Linear antennas, sometimes found on micro drones, will also have reduced performance when paired with circular polarized goggle antennas.

• Physical Damage: Inspect all antennas for physical damage such as bends, breaks, or crushed elements. A damaged antenna will have compromised performance.

• Pigtail: If a pigtail extension cable is used between the VTX and its antenna, inspect its condition, connectors, and solder joints. Pigtails can wear out or get damaged over time, degrading signal quality.


Goggle Sanity Check: Verifying Goggle Functionality with a Known Good Source

Before blaming the drone's camera or VTX, it's wise to confirm the FPV goggles themselves are working correctly.

• Test with a Known Good Source: If possible, test the goggles with another FPV drone that is known to have a perfectly working video system.
  Alternatively, some goggles have an AV input jack; connecting an external video source like a DVD player with a composite video output (if available) can also serve as a test.

• Rule Out Goggle Issues: If the goggles display a clear image from the known good source, then the goggles and their internal video receiver (VRX) module are likely not the problem.

• Goggle Battery: Check the battery level of the FPV goggles. While less common, a very low goggle battery could potentially cause display issues or receiver malfunctions in some models.

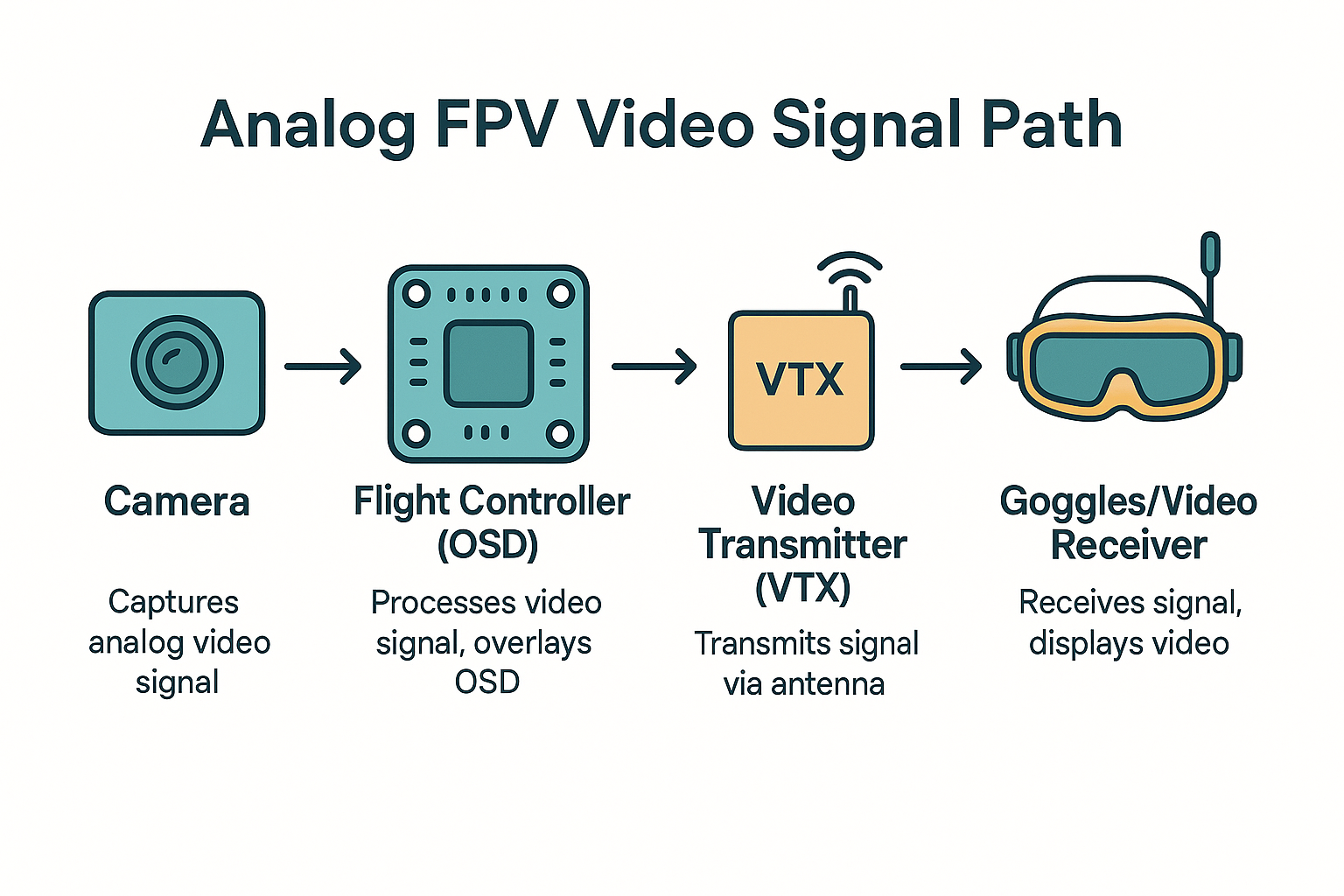

The interconnected nature of the FPV system means that a problem in one area can often manifest symptoms in another. For example, a loose motor mounting screw that allows the motor to vibrate excessively might not seem directly related to video, but those vibrations could shake the camera loose or cause jello.

Similarly, a motor screw that is too long and shorts against the motor windings can inject severe electrical noise into the power system, crippling the video feed. These preliminary checks are designed to identify and rectify such "environmental" issues, ensuring that the camera is operating in optimal conditions before it is singled out as the faulty component. This systematic approach avoids the inefficient and often costly method of randomly replacing parts.

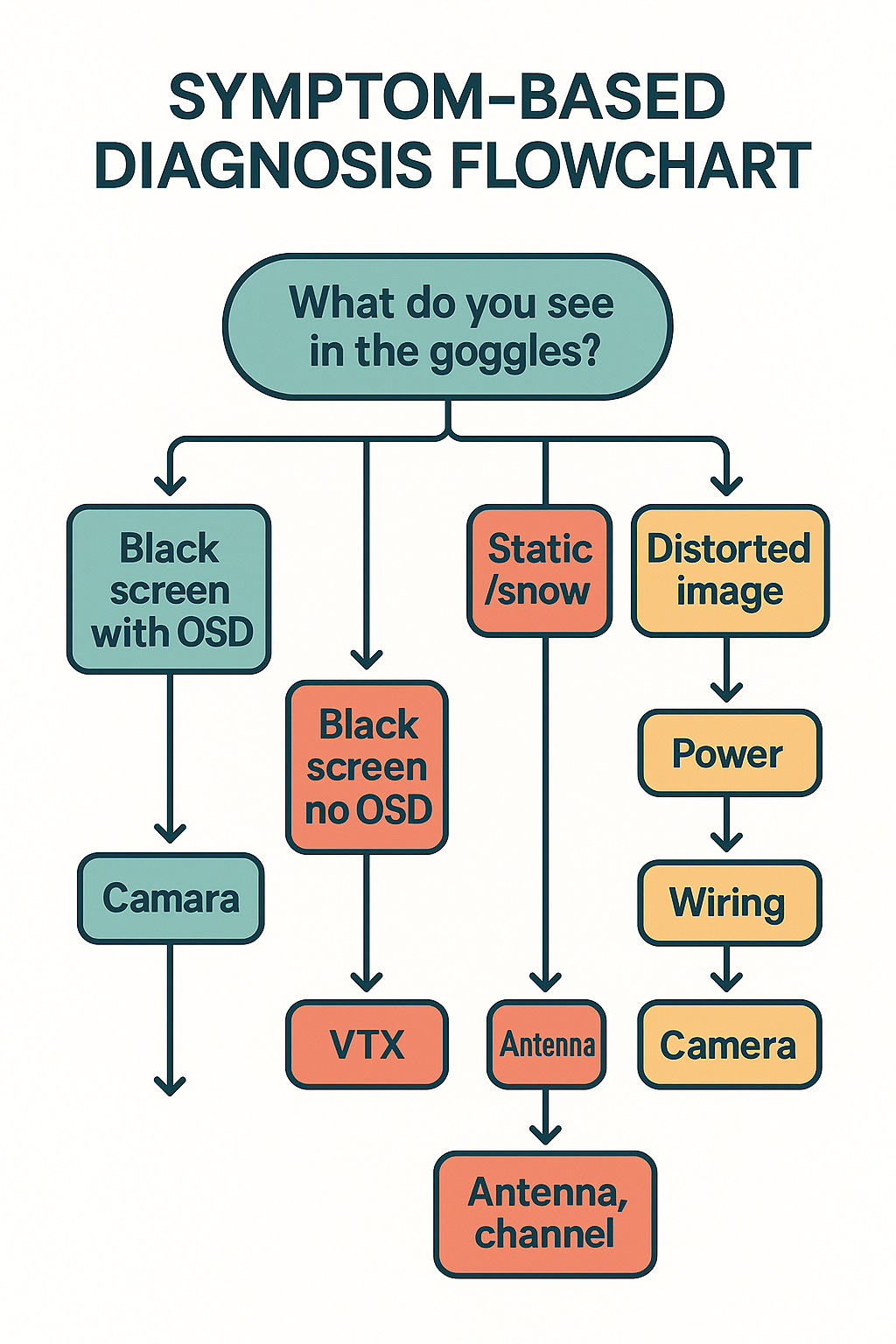

4. Symptom-Based Diagnosis: Is Your Camera the Culprit?

Once preliminary checks have ruled out common external issues, the focus shifts to analyzing specific video symptoms. The way a problem manifests in the FPV feed provides crucial clues to its origin. Understanding the signal flow (Camera -> FC/OSD -> VTX -> Goggles) is key to interpreting these symptoms correctly. For instance, the presence or absence of the On-Screen Display (OSD) is a powerful diagnostic indicator.

The following table provides a quick reference to link common symptoms with their most likely causes, guiding initial diagnostic efforts.

Table 1: Symptom-to-Potential-Culprit Quick Reference

Video Symptom	Most Likely Primary Suspect(s)	Key Differentiating Factors or Initial Checks
No Video: Black Screen with OSD	Camera, Camera Power/Wiring	OSD is present, indicating FC OSD & VTX are working. Focus on camera, its power, and video signal wire to FC.
No Video: Black Screen without OSD	Camera, FC (OSD chip), VTX, Power/Wiring to all	Ambiguous. Could be camera, FC OSD failure, VTX failure, or major power issue. Systematic checks needed.
No Video: Static/Snow Screen	VTX, VTX Antenna, VTX/Goggle Channel Mismatch, VTX Power	Goggles receiving no valid signal. Focus on VTX power, antenna connection/health, and channel sync. Camera less likely.
Frozen Video Image with OSD Updating	Camera	OSD elements are live, but camera image is static. Very strong indicator of camera internal fault.
Frozen Video Image including OSD	FC (OSD chip), VTX, Goggle VRX module	Entire display is frozen. Problem is likely after camera and OSD generation.
Distorted/Garbled/Unstable Image	Power Noise, Wiring, Interference, Camera, VTX	Broad category. Note if it correlates with throttle (power noise), drone movement (loose wire), or location (RF interference).
Vertical Rolling Lines	Camera (bad sync), Weak Signal, VRX Sync Handling, NTSC/PAL Mismatch	Loss of vertical sync pulse. Low-quality camera can be a cause.
Horizontal White Lines	Electrical Noise (Power to Camera/VTX)	Often fixed with capacitors or cleaner power source.
Horizontal Black Flickering Lines	Insufficient Power to VTX (and thus possibly camera)	VTX is underpowered, common at high output settings.
Sideways Scrolling Image	Camera (bad sync confusing VRX), VRX Incompatibility/Setting	Often related to advanced VRX modules struggling with non-standard camera sync pulses.
Intermittent Signal / Random Dropouts	Loose Wiring/Connectors (Camera, VTX, Antenna), VTX Overheating	Video cuts in and out. Check all physical connections and VTX temperature.
Incorrect Colors / Washed Out / Poor Contrast	Camera Settings (NTSC/PAL, Brightness, etc.), VTX Channel, Lens	Check NTSC/PAL match, camera OSD settings. Also verify VTX channel and antenna.
"Jello" Effect / Excessive Vibration	Mechanical Vibration (Props, Motors, Frame), Camera Mounting	Wobbling image. Primarily mechanical; check props, motors, frame. Then camera mounting/lens security.

Symptom: No Video Output (Black Screen)

A black screen is a common and frustrating issue. The presence or absence of OSD information is the most critical factor in narrowing down the cause.

• Scenario A: Black Screen with OSD (Strongly Suspects Camera)


• Explanation: If the OSD generated by the flight controller is visible on the black screen, it signifies that the FC's OSD chip is operational and the VTX is successfully transmitting this OSD information (superimposed on a black background) to the FPV goggles.


• The blackness where the camera image should be indicates that the FC is not receiving a video signal from the camera to overlay the OSD onto.


• Possible Camera-Related Causes:

  • Defective Camera: The camera's sensor, image processing circuitry, or other internal electronics may have failed.

  • Camera Power Issue: The camera may not be receiving power, or the voltage may be insufficient. Check the power and ground wires connected to the camera.

  • Broken Video Signal Wire: The wire carrying the video signal from the camera to the FC's video input pad could be broken, disconnected, or have a bad solder joint.

  • Loose Camera Connector: If the camera uses a JST or similar connector, it might be loose or making poor contact.

  • Camera Ground Issue: An inadequate ground connection for the camera can also lead to signal loss. Even a problematic ground pad on the flight controller designated for the camera can cause this symptom.

• Troubleshooting Steps (leading to camera confirmation):

• Verify that the camera is receiving correct voltage and has a solid ground connection at both the camera end and the FC/PDB end. Use a multimeter for this (see Test 2).

• Check the continuity of the video signal wire from the camera's video output to the FC's video input pad (see Test 2).

• Inspect the camera's connector for any damage or looseness. Reseat it if necessary.

• If all wiring and power aspects appear correct, the camera itself becomes the primary suspect.

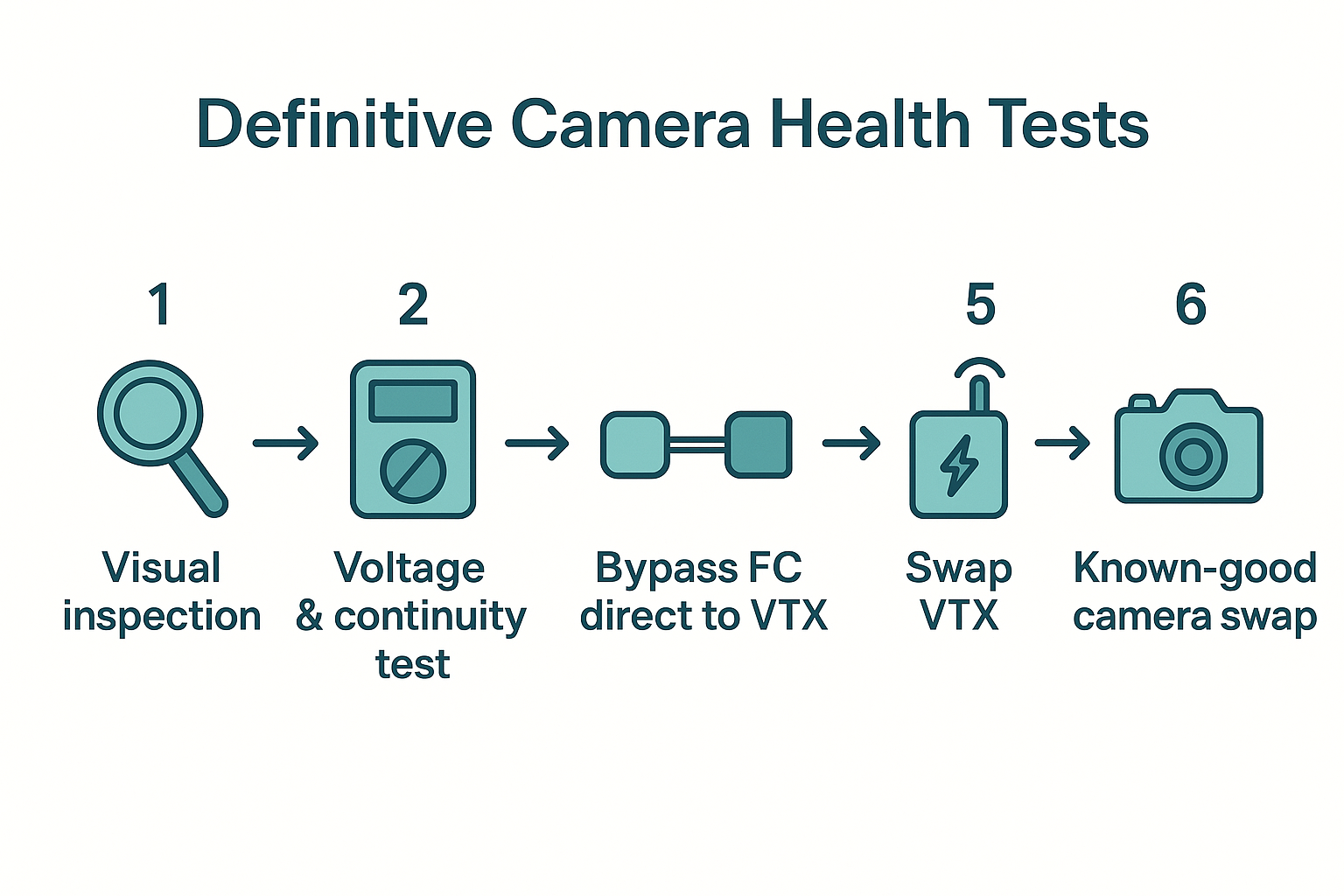

  At this point, testing the camera by bypassing the FC (Test 3a) or swapping with a known-good camera (Test 5) is recommended.

• Scenario B: Black Screen without OSD (Could be Camera, FC, VTX, or Power/Wiring)

• Explanation: When the screen is black and there is no OSD information visible, the problem is more ambiguous. It could stem from an issue earlier in the video chain (like the camera or the FC's OSD chip itself being faulty), a problem with the VTX not transmitting any signal, or a fundamental power or grounding issue affecting multiple components.

• Possible Camera-Related Causes (less direct):
  • A completely dead camera that might be short-circuiting a shared power rail, thereby affecting the FC and/or VTX.

  • A combination of a faulty camera and a faulty OSD chip on the FC.

• Troubleshooting Steps:

• Thoroughly perform all preliminary checks: ensure the FC and VTX are receiving power, the VTX antenna is properly connected, and the VTX and goggles are on the correct channels.

• The BetaFPV troubleshooting guide recommends checking all wire connections first. If connections are good, the next step involves checking the FC. This can be done by carefully bridging the video input pad and video output pad on the FC (or the camera input pad and VTX input pad on the VTX if the FC isn't meant to process the video for OSD). If doing this restores a raw video feed from the camera (without OSD), it indicates the FC's OSD chip or video passthrough circuitry is faulty.

• If bridging the pads on the FC does not restore video, or if the OSD chip is ruled out, then the issue likely lies with the camera, the VTX, or their direct power/ground connections. Proceed to test the camera and VTX independently (e.g., camera connected directly to VTX, or using known-good components).

• One user noted that sometimes if there's no camera signal, the OSD might also not appear, making it seem like a more widespread issue.


Symptom: Rolling or Scrolling Lines (Vertical/Horizontal)

Lines that move across the screen are a common annoyance in analog FPV.

• Vertical Rolling: This typically occurs when the video receiver loses the vertical synchronization pulse from the video signal. Without this pulse, the receiver doesn't know where the top of each new frame begins, causing the image to roll continuously up or down the screen.
  • Possible Camera-Related Causes: A primary cause can be a low-quality FPV camera that produces unstable, inconsistent, or non-standard sync pulses.
  • Other Causes: Weak overall video signal strength, a VTX issue, or the sync reconstruction algorithm in the goggles' VRX module struggling with a noisy or unstable signal can also lead to vertical rolling.
    Some advanced VRX modules (like ImmersionRC Rapidfire or TBS Fusion) are designed to reconstruct sync pulses in weak signal conditions, but even these can be confused by very poor or non-standard sync signals from a camera.
    A mismatch in NTSC/PAL settings between the camera and goggles might also contribute, as non-standard timing can affect sync.
  • Troubleshooting Vertical Rolling:
    1. The most effective test is often to try a different FPV camera, preferably of a different brand or model.
       If a different camera resolves the rolling, the original camera's sync pulse generation is likely the culprit.
    2. If using an advanced VRX module like Rapidfire or Fusion, try disabling its sync pulse reconstruction feature or switching to a different operational mode (e.g., "Legacy" mode).
       This may stop the rolling but can reintroduce flickering or tearing in weak signal conditions, indicating the camera's sync is still problematic.
    3. Double-check that NTSC/PAL settings are identical on the camera (via its OSD menu) and the FPV goggles.
• Horizontal Scrolling/Lines:
  • White Horizontal Lines: These are a classic symptom of excessive electrical noise in the power supply to the camera and/or VTX.
    This noise often originates from the ESCs and motors. Fixes include adding low ESR capacitors to the battery input or 5V/12V rails, ensuring the camera/VTX are powered from a filtered BEC output, and proper grounding.
  • Black Flickering Horizontal Lines: This usually indicates that the VTX is not receiving enough power, a common issue when the VTX is set to higher output power levels.
    Solutions include ensuring the BEC supplying the VTX has a high enough current rating, or powering the VTX directly from the battery (if the VTX supports the full battery voltage and adequate filtering is in place).
  • Sideways Scrolling Image: This can also be caused by a low-quality camera generating inconsistent sync pulses that confuse the sync reconstruction algorithms in advanced VRX modules, leading them to inject fake sync pulses at incorrect times.
    One user experiencing horizontal scrolling fixed it by changing the diversity mode on their Skyzone goggles, suggesting an incompatibility or sync issue between the camera and the VRX's processing.
    Another user in the same discussion suspected their camera was the cause.

Symptom: Intermittent Video Signal / Random Dropouts

An intermittent video signal, where the feed cuts out and then returns, or flickers unpredictably, can be very disorienting and dangerous.

• Explanation: This points to an unstable connection or a component that is failing under certain conditions.
• Possible Camera-Related Causes:
  • Loose Connections: A loose power, ground, or video signal wire or connector at the camera itself, or where it connects to the FC or VTX, is a very common cause.
    The connection might be secure enough at rest but lose contact due to vibration or G-forces during flight.
  • Damaged Camera PCB: Physical damage to the camera's printed circuit board, such as a broken crystal (a timing component) whose legs make intermittent contact with vibration, can cause such issues.
  • Failing Camera Electronics: Internal components within the camera may be failing, leading to sporadic operation.
• Other Causes:
  • VTX Antenna/Pigtail: A loose VTX antenna or a damaged pigtail connector can cause intermittent signal loss.
  • VTX Overheating: If the VTX overheats, it might temporarily shut down or reduce power, causing video dropouts. Ensure it has adequate airflow.
  • Power Sags: Momentary drops in voltage to the camera or VTX due to high current draw from motors can cause them to reset or cut out.
  • Interference: Strong RF interference or severe electrical noise can cause temporary signal loss. For example, interference from a high-power radio control link like TBS Crossfire getting too close to the goggles or VRX antenna has been reported to cause video loss.
• Troubleshooting Intermittent Signals:
  1. Meticulously inspect and reseat all camera and VTX wiring and connectors. Gently tug on each wire at its solder joint or connector to check for looseness.
  2. Investigate vibration-induced issues. If the problem is worse when motors are running or during maneuvers, this points towards a mechanical or vibration-sensitive electrical issue.
     Testing with props off versus props on can sometimes help isolate this.
  3. Monitor the VTX temperature. If it's excessively hot, improve cooling.
  4. Look for potential sources of RF or electrical interference. Try re-routing antenna wires or ensuring separation between video components and noisy electronics.
  5. If all connections appear solid and external factors are ruled out, suspect a failing camera or VTX. Connecting the camera directly to the VTX (Test 3a) can help narrow this down.

Symptom: Incorrect Colors, Washed-Out, or Poor Contrast/Brightness

Video that is consistently discolored, lacks vibrancy, or is too dark or too bright often points to settings or signal quality issues.

• Possible Camera-Related Causes:
  • NTSC/PAL Mismatch: As mentioned earlier, an incorrect NTSC or PAL setting (where the camera outputs one standard and the goggles expect another) can result in a black and white image or generally off-colors.
  • Camera Image Settings: Most FPV cameras have an internal OSD menu allowing adjustment of parameters like brightness, contrast, saturation (color gain), sharpness, and white balance.
    Incorrectly configured settings here are a common cause of poor image quality. For example, too low contrast can make the image look washed out, while too high saturation can make colors look unnatural and oversaturated.
  • Sensor Degradation/Damage: An aging or physically damaged camera sensor might struggle to reproduce colors accurately or maintain good contrast, though this is less common than settings issues.
  • Lens Issues: A very dirty, smudged, or severely damaged lens could reduce contrast or cause color shifts, but this usually also manifests as blurriness or localized artifacts.
• Other Causes:
  • Poor VTX Signal Quality: A very weak or noisy VTX signal can sometimes affect color fidelity, though it usually also presents with static or other distortions.
  • Goggle Display Settings: The FPV goggles themselves often have settings for brightness, contrast, and saturation for their displays. These could be misadjusted.
  • Incorrect VTX Band/Channel: Being on a nearby but not exact VTX channel can sometimes result in a picture with poor color or other distortions.
    A loose or damaged VTX antenna can also degrade signal quality sufficiently to affect colors.
• Troubleshooting Color/Contrast/Brightness Issues:
  1. Verify that the NTSC/PAL settings on both the camera (via its OSD menu) and the FPV goggles are identical.
  2. Access the camera's internal OSD menu and try adjusting brightness, contrast, saturation, and white balance settings. It's often helpful to note the default values before making changes, or to use a "reset to factory defaults" option if available.
  3. Check the display settings on your FPV goggles and adjust them if necessary.
  4. Ensure you are on the correct VTX channel and band, and that the VTX antenna connection is secure and the antenna is in good condition.
  5. Clean the camera lens thoroughly with a microfiber cloth.

Symptom: Frozen Video Image

A frozen video image is a critical failure, and again, the status of the OSD is the key differentiator.

• Scenario A: Image Frozen with OSD Updating (Very High Likelihood of Camera Fault)

  • Explanation: If the video image from the camera freezes, but the OSD elements (such as battery voltage, flight timer, GPS coordinates, etc.) continue to update and display live data, this is a very strong indication that the FPV camera itself has malfunctioned.
    The logic is that the flight controller is still running, generating OSD data, and sending it to the VTX, which is also still transmitting. The camera, however, has stopped providing new video frames to the FC.
  • Possible Camera-Related Causes:
    • Internal Camera Failure: The camera's image sensor may have hung, its internal image processor may have crashed, or another critical internal component has failed.
      One user explicitly described this scenario as "100% a camera" issue for analog systems.
    • Intermittent Power/Connection (leading to hang): While less common for a persistent freeze, an unstable power supply or a loose connection specifically to the camera could potentially cause it to hang or enter a fault state from which it doesn't recover, while other systems (FC/VTX) remain partially operational.
  • Troubleshooting Frozen Image with Live OSD:
    1. Power cycle the entire drone. If the issue occurs repeatedly after power cycling, it indicates a persistent fault.
    2. Carefully check all camera connections: power, ground, and video signal wires. Ensure connectors are secure and solder joints are intact. One user reported finding dirt on the back of the camera possibly touching contacts, which they cleaned when facing a similar issue.
    3. If all connections appear sound and the problem persists, the camera is the prime suspect and likely needs replacement.

• Scenario B: Image Frozen including OSD (Points to FC OSD Chip, VTX, or Goggles)

  • Explanation: If the entire FPV display freezes – meaning both the camera's video image and all the OSD elements stop updating and become static – then the problem likely lies downstream from the camera and often downstream from the initial OSD generation on the FC.
  • Possible Causes (Non-Camera):
    • FC OSD Chip Failure: The OSD chip on the flight controller might have frozen or failed, causing it to output a static frame (which could be the last valid frame it processed, or a corrupted one) to the VTX.
    • VTX Malfunction: The VTX itself could be overheating and freezing its output, or experiencing an internal failure.
    • Goggle/VRX Module Issue: The video receiver module in the goggles could be at fault, freezing the display.
    • Power/Signal Instability: Unstable voltage or a problematic MSP (MultiWii Serial Protocol) line, if used for VTX control or OSD data, could cause OSD elements or the entire video system to freeze or behave erratically.
  • Troubleshooting Frozen Image and OSD:
    1. If the OSD is also frozen, one user suggests the FC's OSD chip is a likely failure point. A recommended test is to bypass the OSD by wiring the camera's video output directly to the VTX's video input (Test 3a). If this provides a live (though OSD-less) image, the FC OSD chip is confirmed as faulty.
    2. Consider VTX overheating as a cause. Allow it to cool and see if the issue resolves temporarily.
    3. If resetting the quadcopter (power cycle) doesn't fix the frozen image, but resetting the goggles (power cycle or re-selecting channel) does, then the goggles or VRX module are suspect.
    4. Investigate potential power supply instability or issues with control lines (like SmartAudio/Tramp or MSP) to the VTX if these are suspected of causing OSD elements to freeze.

Symptom: "Jello" Effect or Excessive Vibration in Video

• Possible Camera-Related Causes:
  • Loose Camera Mounting: If the camera is not securely mounted to the drone frame, it will vibrate excessively.
    Check that all mounting screws are tight.
  • Loose or Cracked Lens/Lock Nut: The camera lens itself, or the lock nut securing it, might be loose, allowing the lens elements or the entire lens assembly to vibrate.
  • Loose Camera Sensor: In some cases, the image sensor itself can become loose inside the camera housing, leading to jello.
    This usually requires camera disassembly to confirm.
  • Inadequate Vibration Damping: The camera mount itself might not provide sufficient vibration damping.
• Other Causes (Often More Common):
  • Unbalanced or Bent Propellers: This is one of the most frequent causes of jello. Even slightly damaged or unbalanced props can introduce significant vibrations.
    Always try a fresh set of props first.
  • Loose Frame Arms or Screws: Any looseness in the drone's frame can amplify vibrations.
  • Motor Issues: Motors that are out of balance, have damaged bearings, or have loose mounting screws can be a major source of vibration.
  • Flight Controller Mounting: If the flight controller is not properly soft-mounted, vibrations can affect its gyro, leading to poor flight performance and potentially contributing to oscillations that manifest as jello. Wires touching the gyro can also transmit vibrations.
  • Poor PID Tune: An aggressive or poorly tuned PID loop can cause oscillations and vibrations.
• Troubleshooting Jello:
  1. Start with the most common and easiest fixes: replace propellers with a new, balanced set. Inspect for any damage to props.
  2. Thoroughly check all frame screws, arm bolts, and motor mounting screws for tightness.
  3. Inspect the camera's mounting. Ensure it is secure and that the lens is tight.
  4. Consider using or improving soft mounting for the camera, such as using TPU (thermoplastic polyurethane) camera mounts, which are excellent at damping vibrations.
  5. Ensure the flight controller is adequately soft-mounted and that no wires are pressing against its gyro sensor.
  6. If mechanical sources are ruled out, investigate PID tuning, though this is less likely to be the sole cause if jello is severe and sudden.

The nuanced observation of symptoms, considering their behavior (e.g., static vs. dynamic lines) and correlation with other factors (like OSD status or motor RPM), is far more effective than looking at a single symptom in isolation. This approach, guided by an understanding of the FPV system's signal flow and component interactions, forms the bedrock of accurate diagnosis and prevents misattribution of faults.

5. Definitive Camera Health Tests: The Gauntlet

After conducting preliminary checks and analyzing symptoms, if the FPV camera is still suspected, a series of more focused tests are required to definitively confirm its health. These tests are designed to progressively isolate the camera and scrutinize its performance under controlled conditions. This structured escalation minimizes unnecessary work and cost by starting with simpler, non-invasive checks and moving towards more conclusive, albeit sometimes more involved, procedures.

Test 1: Thorough Visual Inspection of the Camera

A careful visual examination can often reveal obvious physical damage that could impair camera function.

• Lens Examination:
  • Inspect the front lens element for scratches, cracks, or chips.
    Minor surface scratches may only cause issues like increased glare when flying towards the sun or a slight localized blur, and often do not severely degrade the overall image quality.
    However, deep scratches, especially those near the center of the lens, or significant cracks are more likely to noticeably affect the video.
    Cracks can also compromise the camera's sealing, allowing moisture or dust to enter and potentially damage internal components or fog the lens from the inside.
  • Ensure the lens is securely screwed into the camera body. If it has an adjustable focus, check that the lock nut (if present) is tight to prevent the focus from shifting or the lens from vibrating, which can cause jello or blurry images.
  • Look for any dirt, dust, grime, or smudges on the lens surface. These can cause blurry patches, reduced contrast, or flare. Clean the lens gently using a dedicated lens microfiber cloth, lens paper, or an air blower.
    Avoid abrasive materials or harsh chemicals.
• Image Sensor Check:
  • Dust or debris on the image sensor itself (located behind the lens) can manifest as fixed dark spots, smudges, or blurry areas in the video feed.
    One user reported observing an increasing number of "faint dots" in their FPV feed due to dust accumulating on the sensor.
  • Accessing the sensor usually requires unscrewing and removing the lens. This should be done in a clean, dust-free environment with the camera powered off to prevent static electricity from attracting more dust to the sensor.
  • If dust is visible on the sensor, try removing it with a gentle puff from an air blower. If that doesn't work, and if comfortable doing so, one might carefully use a sensor swab or a clean, soft lens tissue, possibly after lightly "steaming" the sensor by exhaling on it from a short distance, though extreme care must be taken not to scratch the sensor surface.
  • Visually check if the sensor appears physically dislodged, tilted, or damaged. A loose sensor can be a cause of jello or focus problems.
• Camera PCB and Connector Integrity:
  • Inspect the camera's Printed Circuit Board (PCB) for any obvious signs of physical damage, such as cracks, burn marks (indicating a short circuit or component failure), or damaged/dislodged electronic components. A broken crystal oscillator, a small metallic component on the PCB, was identified as a cause of intermittent video due to its fragile legs making inconsistent contact.
  • If the camera uses a plug-in connector for its wires, examine the pins for any bends, breaks, corrosion, or signs of looseness. Ensure the plug is fully and securely seated in its socket.
  • If wires are directly soldered to the camera's PCB, inspect these solder joints for quality. They should be shiny and well-flowed, not dull, cracked, or balled-up (cold solder joint).

Test 2: Power Supply Verification at the Camera

No electronic device will function correctly without adequate and stable power. This test verifies that the camera is receiving the correct voltage and has proper ground continuity.

• Using a Multimeter: Measuring Input Voltage at the Camera's Connector/Pads:
  • Safety First: Always remove propellers from the drone before powering it on for bench testing.
  • Multimeter Setup: Set your multimeter to the DC Voltage measurement mode (often indicated by "V- ", "VDC", or a V with a straight line and three dots).
    Select a voltage range appropriate for your camera's expected input (e.g., the 20V range is usually suitable for typical FPV camera voltages like 5V or 12V).
  • Measurement Procedure: Power on the drone. Carefully touch the multimeter's red (positive) probe to the camera's positive power input pad or the corresponding pin in its connector. Simultaneously, touch the black (negative/common) probe to the camera's ground input pad or pin.
  • Interpreting Results: The multimeter should display a voltage reading. Compare this reading to the camera's specified input voltage range (e.g., 4.8V-5.2V for a 5V camera).
    • If the voltage is significantly low, absent, or excessively high, it indicates a problem with the power source (e.g., faulty BEC on the FC/PDB), the wiring delivering power to the camera, or incorrect wiring (e.g., camera connected to the wrong voltage pad). This is a power supply issue to the camera, not necessarily an internal camera fault.
    • If the voltage is correct, the camera is receiving proper power.
• Using a Multimeter: Checking Continuity of Power and Ground Wires to the Camera:
  • Safety First: Ensure the drone's main battery is disconnected before performing continuity tests.
  • Multimeter Setup: Set your multimeter to continuity mode. This mode is often indicated by a diode symbol, a sound wave symbol, or "CONT".
    To verify the mode, touch the multimeter probes together; the meter should beep or show a very low resistance reading.
  • Testing the Ground Wire: Place one multimeter probe on the camera's ground input pad/pin. Place the other probe on a known good ground point on the flight controller or PDB (e.g., the main battery negative terminal pad, or another ground pad known to be connected). A beep (or low resistance reading) indicates continuity, meaning the ground wire is intact and properly connected. No beep suggests a broken wire, bad solder joint, or faulty connector pin.
  • Testing the Positive Power Wire: Place one probe on the camera's positive power input pad/pin. Place the other probe on the corresponding power output pad on the FC or PDB that is supposed to supply the camera (e.g., a 5V pad if it's a 5V camera). A beep indicates continuity. No beep indicates a problem with this wire or its connections.
  • Testing the Video Signal Wire: Similarly, check continuity of the video signal wire from the camera's video output pad/pin to the FC's video input pad (or VTX video input if wired directly). A break in this wire will result in no video signal reaching the next component. A video cable broken internally, even if the insulation looks intact, can be detected this way.

Test 3: Video Signal Path Integrity Checks

These tests help determine if the camera can output a valid video signal and whether other components in the path (like the FC's OSD chip) are interfering.

• Isolating the Camera: Direct Connection to VTX (Bypassing FC OSD):
  • Explanation: This is a critical isolation test. If the flight controller's OSD chip or video pass-through circuitry is faulty, it can prevent a good camera signal from reaching the VTX. Connecting the camera directly to the VTX bypasses the FC for video processing, allowing a direct assessment of the camera-VTX link.
  • Procedure:
    1. Ensure the drone's battery is disconnected.
    2. Identify the camera's video output wire (usually yellow) and the VTX's video input wire.
    3. Carefully de-solder or disconnect the camera's video output wire from the FC's "Video In" pad.
    4. Similarly, de-solder or disconnect the VTX's video input wire from the FC's "Video Out" pad.
    5. Now, directly connect the camera's video output wire to the VTX's video input wire. This can be done by soldering them together (insulate the joint with heat shrink) or by using a secure temporary connection like a small wire nut or a properly made plug-and-socket if available.
    6. Ensure the camera and VTX are still correctly powered (usually from their original power pads on the FC or PDB, or via a separate, suitable battery for testing if one is confident in the wiring). The ground connections for both camera and VTX must also remain intact and ideally common.
    7. With props removed, power on the drone and check the FPV feed in the goggles.
  • Interpreting Results:
    • Clear Video Appears (without OSD): If a clear video image from the camera is now visible in the goggles (it will not have any OSD elements, as the FC has been bypassed), this indicates that both the camera and the VTX are likely functioning correctly. The problem, in this case, most likely lies with the flight controller (e.g., a faulty OSD chip, damaged video input/output traces on the FC, or incorrect FC wiring/configuration).
    • Still No Video / Same Problem Persists: If the original video problem (e.g., black screen, static, distorted image) remains even with the direct camera-to-VTX connection, then the fault is highly likely to be with either the camera itself or the VTX (or their immediate power/ground connections that were part of this direct test). Proceed to Test 3b or Test 5.
• Swapping Components: Testing with a Known-Good VTX:
  • If Test 3a (direct connection) still results in problematic video, and a spare, known-good VTX is available, the next step is to connect the suspect camera (along with its verified power and ground) to this known-good VTX.
  • If the video feed becomes clear when using the known-good VTX, then the original VTX was faulty.
  • If the problem persists even with the known-good VTX, this further implicates the camera as the source of the issue.
• Swapping Components: Testing with Known-Good Goggles/Video Receiver:
  • This was covered in the Preliminary Checks (Section 3). If there's any lingering doubt about the goggles or their VRX module, re-testing them with a completely different, known-good FPV drone or video source is advisable.

Test 4: Internal Camera Settings & Configuration

Incorrect internal settings within the FPV camera can cause a range of video issues, from no image to incorrect colors or a rolling picture.

• Accessing the Camera's OSD Menu (via Joystick or FC Passthrough):
  • Many FPV cameras feature an internal On-Screen Display menu for adjusting various parameters. This menu is typically accessed in one of two ways:
    • Joystick/Keypad: Some cameras come with a small, plug-in joystick or keypad controller that connects to a dedicated OSD port or pins on the camera.
    • Flight Controller Passthrough (Camera Control): Newer cameras and flight controller firmwares may support "Camera Control," allowing the user to access and navigate the camera's OSD menu using the transmitter sticks, with the commands being passed through the flight controller to the camera via a UART connection.
  • Consult the camera's manual to determine the correct method for accessing its settings menu.
• Verifying and Matching NTSC/PAL Settings with Goggles:
  • Once in the camera's OSD menu, locate the video standard setting (usually labeled NTSC or PAL). Ensure this setting matches the video standard selected or expected by your FPV goggles or display screen.
  • A mismatch between NTSC and PAL is a common cause of problems like a rolling picture, a black and white image, heavily distorted colors, or even no image at all.
    One user successfully resolved an issue with missing OSD and black-and-white video by changing the camera's setting from PAL to NTSC using its OSD control board.
• Adjusting Brightness, Contrast, Saturation, and other Image Parameters:
  • If the FPV image appears too dark, too bright, washed out, or if colors seem unnatural or oversaturated, these issues can often be corrected by adjusting settings like Brightness, Contrast, Saturation (often called Color Gain or Chroma), Sharpness, and White Balance within the camera's OSD menu.
  • It's advisable to note down the default values before making significant changes, or to look for a "Reset to Default" option if you get lost in the settings.
• Attempting a Factory Reset of Camera Settings:
  • Most FPV cameras that have an internal OSD menu also include a "Factory Reset," "Load Defaults," or "Restore Defaults" option.
    Selecting this option will revert all camera settings to their original factory state. This can be a quick way to resolve issues caused by inadvertently misconfigured parameters.

Test 5: The Ultimate Confirmation – The Known-Good Camera Swap

This is often considered the most definitive test to determine if a camera is faulty.

• Explanation: If all previous tests have been performed and the camera is still the prime suspect (or if one wants to bypass extensive troubleshooting for a quicker, albeit potentially more costly, confirmation), replacing the suspect camera with an identical or compatible FPV camera that is known to be in perfect working order provides a clear verdict.
• Procedure:
  1. Before disconnecting the suspect camera, carefully note or photograph its wiring connections (power, ground, video signal, and any camera control wires).
  2. Ensure the drone's battery is disconnected.
  3. Carefully de-solder or disconnect the suspect FPV camera.
  4. Install the known-good FPV camera, ensuring it is connected using the exact same power, ground, and video signal pads/pins on the FC or VTX as the original camera. Pay close attention to polarity and voltage compatibility.
  5. With props removed, power on the drone and observe the FPV feed.
• Interpreting Results:
  • Video Feed is Now Perfect: If the FPV feed is clear and stable with the known-good camera, this provides very strong evidence that the original (suspect) camera was indeed faulty.
    As one source stated directly, replacing the camera fixed the frozen image issue.
  • Problem Persists Even with Known-Good Camera: If the exact same video problem occurs even with the known-good camera, then the issue lies elsewhere in the FPV system – such as the wiring harness (if not replaced with the camera), the flight controller, the VTX, the power supply, or an external interference source – that was not successfully identified or rectified by the earlier troubleshooting steps. While less common if previous diagnostics were thorough, this outcome points to a more elusive or complex problem.

The progression through these definitive tests, from simple visual checks to the conclusive swap, builds a strong evidentiary basis for diagnosing the camera's health. Each step provides more data, allowing for a more informed decision before condemning the camera and incurring the cost of replacement.
