Troubleshooting Betaflight Flight Controller Power and LED Issues
Experiencing power and LED issues with your flight controller can be challenging. Here's an enhanced guide to help you diagnose and resolve these problems:
1. Check Connections:
Secure Wiring: Ensure all connections are firm and correctly oriented. Loose or incorrect wiring can disrupt power delivery.
Test with a Different Battery: Use an alternative, fully charged battery to eliminate the possibility of a faulty power source.

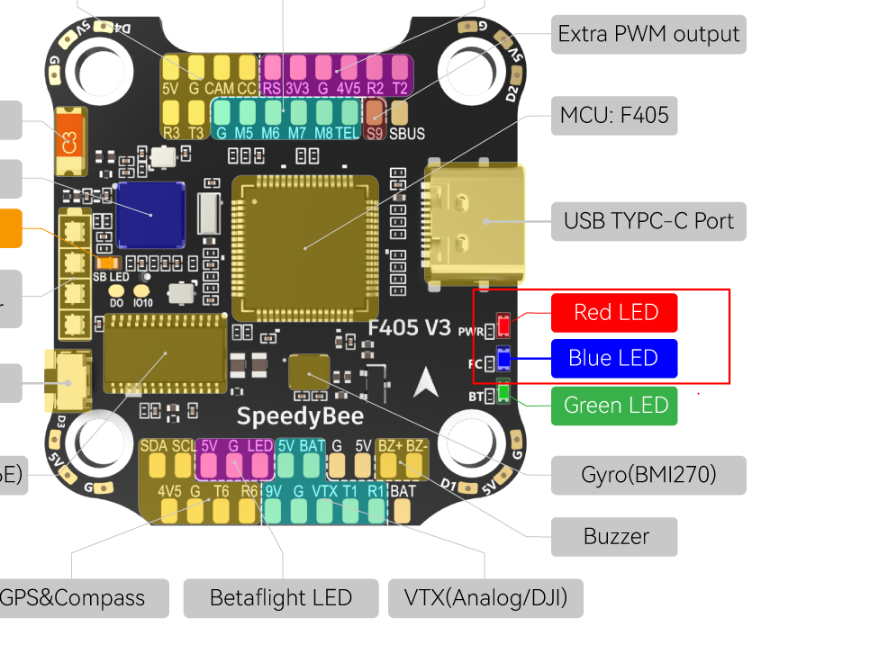

2. LED Status Indicators:
Red Indicator Light:
Steady Red: Indicates a normal power supply.
No Red Light: Suggests the flight controller isn't receiving power properly. In this case, inspect the power connections and consider consulting resources like SpeedyBee's troubleshooting guide.
Blue Indicator Light:
Blinking Blue: Signifies normal operation.
No Blue Light or Solid Blue: Indicates potential malfunction or a bricked state. To address this, you may need to enter DFU mode and reflash the firmware.
3. Test with Betaflight:
Connection: Connect the flight controller to Betaflight Configurator.
Error Check: Look for any errors or missing configurations.
Driver Issues: If connection fails, it might be due to driver problems. Running the ImpulseRC Driver Fixer can help resolve this.
4. Reflash Firmware:
Enter DFU Mode: If the flight controller is unresponsive, enter DFU mode to reflash the firmware. This process can often revive a bricked flight controller.
Firmware Compatibility: Ensure the firmware version is compatible with your specific flight controller model.
5. Voltage Calibration:
- Incorrect Voltage Readings: If you notice discrepancies in voltage readings, calibrate the voltage sensor in Betaflight. This ensures accurate battery monitoring.
6. When to Seek Replacement:
- Persistent Issues: If the flight controller remains unresponsive after these steps, it may require repair or replacement.
For a visual guide on diagnosing flight controller issues, you might find the following video helpful:
By following these steps, you can systematically identify and address power and LED issues with your flight controller.
